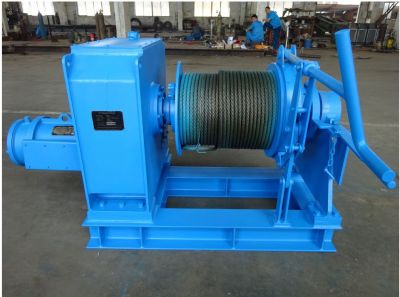

2T Electric Mooring Winch
₱0.00
Rated Load: 2 ton;
Driven Mode: Electrical Driven;
Drum Type: Single Drum;
Drum Capacity: 200m*15mm;
Rated Speed: 12 m/min;
Control Mode: Local control (standing control panel);
Power Supply: 3Phase 230V/60Hz;
Manual Operated Clutch & Brake Included;
Item Unit Parameter
Product Mooring winch
Drum Mode Single drum
Driven mode Electrical driven
Rated load KN 20
Holding load KN 60
Rated speed m/min 12
Drum capacity m 200
Wire rope diameter mm 15
Motor model JZ2-H-61-4P
Motor power kw 11
Control mode Control panel attached on electrical box
Painting Color Yellow, blue or customized
Power supply 3phase 230V/60Hz
Size (L*W*H) mm 1100*900*650
Steel material mode Q345B low carbon alloy steel
Drum steel type Q345B steel plate
Driven Mode: Electrical Driven;
Drum Type: Single Drum;
Drum Capacity: 200m*15mm;
Rated Speed: 12 m/min;
Control Mode: Local control (standing control panel);
Power Supply: 3Phase 230V/60Hz;
Manual Operated Clutch & Brake Included;
Item Unit Parameter
Product Mooring winch
Drum Mode Single drum
Driven mode Electrical driven
Rated load KN 20
Holding load KN 60
Rated speed m/min 12
Drum capacity m 200
Wire rope diameter mm 15
Motor model JZ2-H-61-4P
Motor power kw 11
Control mode Control panel attached on electrical box
Painting Color Yellow, blue or customized
Power supply 3phase 230V/60Hz
Size (L*W*H) mm 1100*900*650
Steel material mode Q345B low carbon alloy steel
Drum steel type Q345B steel plate
