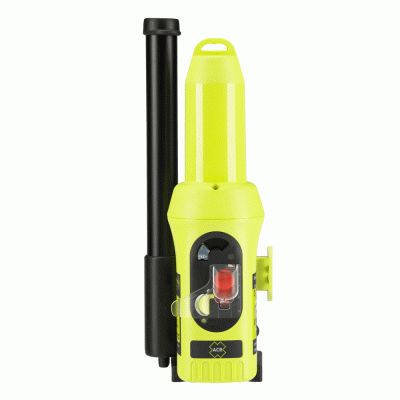

ACR Pathfinder Pro Sart Search and Rescue Transponder #2914
₱78,000.00
PathFinder Pro SART Search & Rescue Transponder - Non-Hazmat
The Pathfinder Pro is a fully approved Search and Rescue Transponder (SART) that complies with IMO SOLAS regulations. When interrogated by radar, the Pathfinder Pro returns 12 intense blips back to the vessels radar screen, greatly enhancing search and rescue efforts. The superior lithium battery provides over 96 hours of operating life in standby mode (waiting to be interrogated by radar) and 12 hours of active operating life (while interrogated by radar).
The Pathfinder Pro comes with a sleek wall mount to keep this compact SART out of the way, yet readily accessible in an emergency. The attached telescopic pole conveniently connects to the bottom of the SART and provides for maximum height and visibility out of a life craft. The SART can also be suspended inside the craft for hands free usage.
Search and Rescue Transponder (SART) is mandatory for all commercial vessels that must conform to GMDSS, and any vessel carrying more than one life raft.
Carriage Requirements
Any IMO SOLAS vessels on international voyages are required to carry a SART
300-500 Gross Register Tonnage (GRT) must carry a minimum of 1 SART
Over 500 Gross Register Tonnage (GRT) must carry
a minimum of 2 SARTs
1 SART for every four life rafts on Ro-Ro passenger vessels
Features
Enhances radar returns with 12 intense blips, whereby the first blip represents the SARTs location
Unit transmits through the 9.2-9.5 GHz band marine radar when interrogated by radar
Vessel mounting bracket and collapsible pole
Compact 8.94 x 2.56 Inches (227 mm x 65 mm) unit easily packs into life raft
Waterproof to 10 meters (33 ft)
Non-Hazmat Lithium battery (5-year replacement life) operates for over 96 hours in standby mode plus anadditional 12 operational hours
Worldwide certifications; complies with IMO, MED, FCC and IEC standards
Specifications:
Size: 8.94 x 2.56 Inches (227 mm x 65 mm)
Weight: 15.5 oz (440g)
Battery: Lithium/Iron Disulfide (Li/FeS2) - Non Hazardous
Operation: Break protective cover, slide and hold yellow switch to the left, slide the red switch into the down position
Deployment: Manual
Frequency: 9.2-9.5GHz
Waterproof: >10 meters @ +20°C
Output Power (EIRP): >26 dBm eirp
Temperature Range (Operating): -20°C to +55°C
Temperature Range (Storage): -30°C to +70°C
Operating Life Standby: >96 Hours
Operating Life Active: >12 Hours
Certification: FCC, MED, Industry Canada, and Chinese CCS type approval certificate. Tested to IMO and IEC Standards
Accessories: Vessel mounting bracket included.
The Pathfinder Pro is a fully approved Search and Rescue Transponder (SART) that complies with IMO SOLAS regulations. When interrogated by radar, the Pathfinder Pro returns 12 intense blips back to the vessels radar screen, greatly enhancing search and rescue efforts. The superior lithium battery provides over 96 hours of operating life in standby mode (waiting to be interrogated by radar) and 12 hours of active operating life (while interrogated by radar).
The Pathfinder Pro comes with a sleek wall mount to keep this compact SART out of the way, yet readily accessible in an emergency. The attached telescopic pole conveniently connects to the bottom of the SART and provides for maximum height and visibility out of a life craft. The SART can also be suspended inside the craft for hands free usage.
Search and Rescue Transponder (SART) is mandatory for all commercial vessels that must conform to GMDSS, and any vessel carrying more than one life raft.
Carriage Requirements
Any IMO SOLAS vessels on international voyages are required to carry a SART
300-500 Gross Register Tonnage (GRT) must carry a minimum of 1 SART
Over 500 Gross Register Tonnage (GRT) must carry
a minimum of 2 SARTs
1 SART for every four life rafts on Ro-Ro passenger vessels
Features
Enhances radar returns with 12 intense blips, whereby the first blip represents the SARTs location
Unit transmits through the 9.2-9.5 GHz band marine radar when interrogated by radar
Vessel mounting bracket and collapsible pole
Compact 8.94 x 2.56 Inches (227 mm x 65 mm) unit easily packs into life raft
Waterproof to 10 meters (33 ft)
Non-Hazmat Lithium battery (5-year replacement life) operates for over 96 hours in standby mode plus anadditional 12 operational hours
Worldwide certifications; complies with IMO, MED, FCC and IEC standards
Specifications:
Size: 8.94 x 2.56 Inches (227 mm x 65 mm)
Weight: 15.5 oz (440g)
Battery: Lithium/Iron Disulfide (Li/FeS2) - Non Hazardous
Operation: Break protective cover, slide and hold yellow switch to the left, slide the red switch into the down position
Deployment: Manual
Frequency: 9.2-9.5GHz
Waterproof: >10 meters @ +20°C
Output Power (EIRP): >26 dBm eirp
Temperature Range (Operating): -20°C to +55°C
Temperature Range (Storage): -30°C to +70°C
Operating Life Standby: >96 Hours
Operating Life Active: >12 Hours
Certification: FCC, MED, Industry Canada, and Chinese CCS type approval certificate. Tested to IMO and IEC Standards
Accessories: Vessel mounting bracket included.
