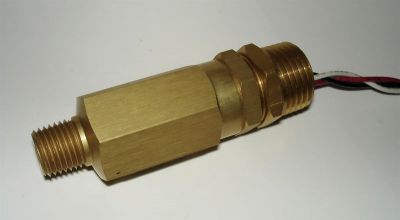

Aqua Environment 853 Pressure Switches

Aqua Environment 853 Pressure Switches

₱11,400.00
Series Designation 853 Series
Type Pressure Switches
Maximum Rated Pressure 6000 psi
Inlet Port Size 1/4 in. MNPT
Outlet Pressure Setting Range/Adjustment Range 0-6000 psi
Leakage Bubble Tight
Minimum Temperature -15 ºF
Body Material Anodized Aluminum
Internal Materials Brass StainlessSeal Materials Viton
Weight 85 g
Overall Length 3.1 in.
Hex Diameter 7/8 in.
Special Notes
Switch: 5amps @ 250VAC, UL&CSA listed. Style: SPDT. Dead band: 200 to 300 ps
