CET PFP-14HPKHL-EM-MR

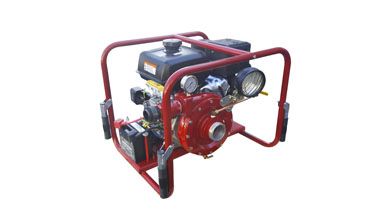

PRESSURE AND VOLUME PUMP This pressure/volume pump is the most suitable for drop-in units. The engine and pump are mounted on a steel protective frame with folding handles. Also available in skid version

ENGINE SPECIFICATIONS

• CH440 Kohler air cooled engine

• Single cylinder, 4-stroke gasoline engine

• 12V electric start with recoil start as backup

• 1.8 gallon (7 l) integrated fuel tank

• 10 amp. charging system PUMP UNIT SPECIFICATIONS

• C.E.T. single stage centrifugal pump, direct drive

• Pump body made from high resistance aluminum alloy • Bronze impeller

• Mechanical shaft seal

• Exhaust priming system, guaranteed up to 20’ (6 meter) lift

• One 1 1/2'' (38 mm) delivery outlet with 1/4-turn ball valve • One 2 1/2'' (64 mm) suction inlet

• Dimensions: Length: 21 3/4'' (552 mm); Width: 26 1/2'' (673 mm); Height: 20 1/4'' (514 mm)

• Wet weight: 162 lbs (74 kg)

INCLUDED ACCESSORIES

• Pressure gauge

• Swivel spotlight • 12V-Battery

• Low oil shut-off

LIMITED WARRANTY

• 3 YEARS

MADE IN CANADA
