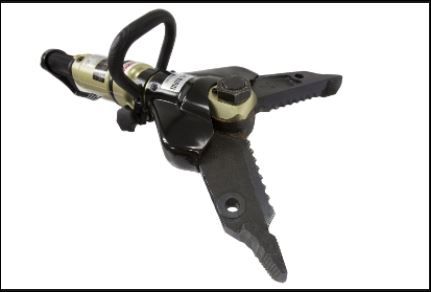

- GENESIS RESCUE 14C VARIO ART.106.258.0 STANDARD COUPLERS EASY PUSH BUTTON VARIABLE CONTROL ROTATING CARRY HANDLE
GENESIS RESCUE 14C VARIO ART.106.258.0 STANDARD COUPLERS EASY PUSH BUTTON VARIABLE CONTROL ROTATING CARRY HANDLE
- The 14C is a mid-range combination tool with fixed tips.
HANDS ON ERGONOMICS
The push button control allows for greater safety to the operator by being able to control the tool with only one finger if need be. This gives the user the ability to keep appendages safe while still having total control over the tool. Traditional twist style controllers require that the operator’s entire hand is gripped tightly on the tool, and this puts that hand in danger of being crushed between the surface and tool with no way to release the power of the tool, effectively trapping the appendage.
The Genesis push button control is a variable speed controller. Lightly depressing the button will feather the speed at which the tool open and closes. The more you depress the button the faster the tool will operate.
LENGTH(IN/MM) - 30.1/765
WIDTH(IN/MM) - 9.3/236
DEPTH(IN/MM) - 8/203
WEIGHT(LBS/KGS) - 32.8/14.9
OPERATING PRESSURE(PSI/BAR) - 10,000/700
SPREADING DISTANCE(IN/MM) - 14.2/360
PULLING DISTANCE(IN/MM) - 15.6/396
OPENING(IN/MM) - 10.1/257
NFPA 1936 COMPLIANT - YES
NFPA 1936 LEVEL RATING - A6 | B8 | C6 | D8 | E7
LOWEST SPREADING FORCE(LBF/KN) - 8,655/38.5
HIGHEST SPREADING FORCE(LBF/KN) - 9,554/42.5
LOWEST PULLING FORCE(LBF/KN) - 8,768/39
HIGHEST PULLING FORCE(LBF/KN) - 10,913/48.5
• NFPA 1936:2015 COMPLIANT
• ISO 9001:2008
