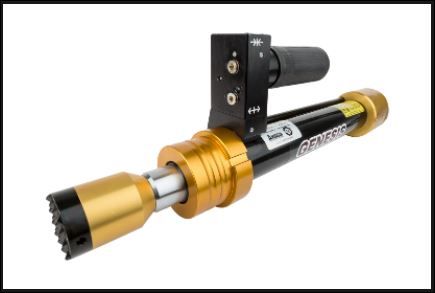

- GENESIS RESCUE 41 INCH PUSH-PULL RAM P/N ART.041.900.1 STANDARD COUPLERS EASY PUSH BUTTON VARIABLE CONTROL
GENESIS RESCUE 41 INCH PUSH-PULL RAM P/N ART.041.900.1 STANDARD COUPLERS EASY PUSH BUTTON VARIABLE CONTROL
- HANDS ON ERGONOMICS
The push button control allows for greater safety to the operator by being able to control the tool with only one finger if need be. This gives the user the ability to keep appendages safe while still having total control over the tool. Traditional twist style controllers require that the operator’s entire hand is gripped tightly on the tool, and this puts that hand in danger of being crushed between the surface and tool with no way to release the power of the tool, effectively trapping the appendage.
The Genesis push button control is a variable speed controller. Lightly depressing the button will feather the speed at which the tool open and closes. The more you depress the button the faster the tool will operate.
Paired with the Angle V-Heads and other accessories in the Slip-Fit Kit. The Push-Pull rams are versatile, ergonomic and powerful.
LENGTH(IN/MM) - 25.4/646
WIDTH(IN/MM) - 4/101
DEPTH(IN/MM) - 8/204
WEIGHT(LBS/KGS) - 35.7/16.2
OPERATING PRESSURE(PSI/BAR) - 10,000/700
LENGHT OPEN(IN/MM) - 41.5/1054
LENGTH RETRACTED(IN/MM) - 25.4/646
STROKE(IN/MM) - 16/408
NFPA 1936 COMPLIANT - YES
NFPA 1936 HSF (LBF/KN) - 32,300/143.7
NFPA 1936 HPF (LBF/KN) - 10,300/45.8
