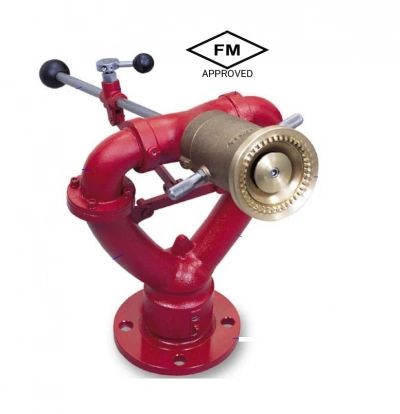

PROTEK 636 MONITOR Style 636 monitor with 3" Flange Inlet

Industrial Monitor
• Full 2-1/2" waterway for flow rate of up to 750 GPM (2900 LPM)
• Full 360˚ rotation
• Vertical travel of 135˚ from 75˚ above to 60˚ below horizontal
• Positive friction locks for both horizontal and vertical travel to hold desired position
• Operating pressure of 16 bar
• Stainless steel lever for durability and easy control
• FM approved

Style 636
Max. GPM (LPM) 750 (2900)
Inlet Size 3" 4" 6" 2-1/2"
Type Flange Female Thread
Outlet 2-1/2"
Control Tiller Bar
Material Brass
Finishing Red Powder Coating
Friction Loss 35 psi at 750 gpm
18 psi at 500 gpm
Travel 135º Vertical
360º Rotation
Weight 44 lbs (20kg)
Certification FM
