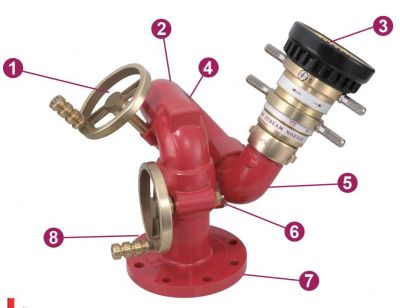

Protek - Style 612 monitor shown with style 848-BC nozzle (Not Included)
₱124,800.00
Industrial Monitor
• Full 3" waterway for flow rate of up to 1250 GPM (4800 LPM)
• Full 360˚ rotation
• Vertical travel of 140˚ from 85˚ above to 55˚ below horizontal
• Vertical and horizontal travel are controlled by hand wheels with worm gears
• Fully enclosed worm gears are protected from the elements
• Double-row stainless steel ball bearings in all rotational joints
• Compact design and low profile
Max. GPM (LPM) 1250 (4800)
Inlet Size 3" Flange / 4" Flange / 3" Female Thread
Outlet 2-1/2"
Control Dual Hand-Wheel
Material Brass
Finishing Red Powder Coating
Friction Loss 26 psi at 1250 gpm / 18 psi at 1000 gpm
Travel 140º Vertical / 360º Rotation
Weight 27 Kgs.
Made in Taiwan
• Full 3" waterway for flow rate of up to 1250 GPM (4800 LPM)
• Full 360˚ rotation
• Vertical travel of 140˚ from 85˚ above to 55˚ below horizontal
• Vertical and horizontal travel are controlled by hand wheels with worm gears
• Fully enclosed worm gears are protected from the elements
• Double-row stainless steel ball bearings in all rotational joints
• Compact design and low profile
Max. GPM (LPM) 1250 (4800)
Inlet Size 3" Flange / 4" Flange / 3" Female Thread
Outlet 2-1/2"
Control Dual Hand-Wheel
Material Brass
Finishing Red Powder Coating
Friction Loss 26 psi at 1250 gpm / 18 psi at 1000 gpm
Travel 140º Vertical / 360º Rotation
Weight 27 Kgs.
Made in Taiwan
