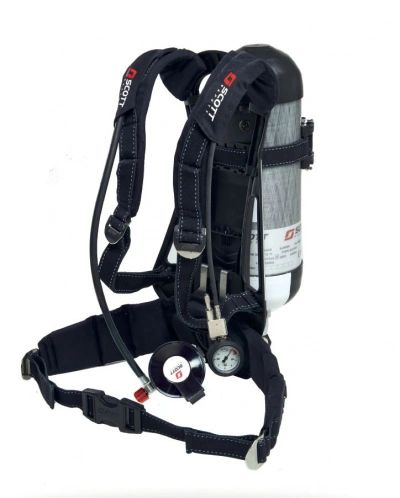

SCOTT 2031988 PROPAK-FX-EZ FLO

PROPAK-EZ-FLO
HIGH PERFORMANCE, RUGGED DEPENDABILITY, TRUSTED TECHNOLOGY
The Propak-EZ-Flo has been designed specifcally to meet the demands of the Professional Fire Service ordering an unequalled level of performance and user comfort. Propak-EZ-Flo provides firefighters a simple to use SCBA which is easily upgraded to include communications and situational awareness. For over 80 years Scott Safety’s innovative engineering and customer led product evolution has enabled their range of Breathing Apparatus to adapt, respond and predict the ever changing needs of users across industries.
Today millions of users worldwide trust in the proven high performance, rugged dependability and the trusted technology of Scott Safety’s products. Backed by dedicated customer support, Scott Safety’s SCBA is the preferred choice across fire fighters, marine and other industries.
HIGH PERFORMANCE
- Developed in response to customer feedback the ProPak range has been designed to increase comfort, improve ease of movement and reduce user fatigue. The rigid back plate is lightweight and ergonomically designed to meet these demands. - The entire range uses the same high performance, reliable pneumatics which provide low breathing resistance and excellent dynamic performance – particularly at low flow rates - Propak-EZ-Flo provides fi refi ghters a simple to use SCBA which is easily upgraded to include communications and situational awareness devices.
RUGGED DEPENDABILITY
- Range of specifi cations available to meet the needs of different users and to withstand the applications in which they’ll be used. - All components are user serviceable and low cost leading to lower through life costs, simpler maintenance, reduction in down time of sets and improved operational flexibility
TRUSTED TECHNOLOGY
- High performance, reliable pneumatics with compact first breath activated demand valve with bypass, the same pneumatics are used on each specification of the ProPak
- ProPak-EZ-Flo features the proven EZ-Flo Demand Valve from Scott Safety, seen at the heart of every Scott Safety AirPak. EZFlo features a first breath automatic activation and anti-fogging spray bar which also acts as a cooling effect for the user.
RANGE OF SPECIFICATIONS
ProPak-fx-Ez-Flo the ultimate in user comfort for the professional fire fighter bring all the benefits of the ProPak-f with the added feature of an adjustable back plate which means that the unit can be altered to fit the height of the wearer.

REDUCING VALVE
First stage pressure reducing valve
featuring non-adjustable, spring
loaded piston mechanism and outlet
supply protected by pressure relief
valve.

PRESSURE INDICATOR & WARNING
WHISTLE
Bourdon tube type dial indicator
Heat and Impact resistant
polycarbonate lens

EZ-FLO DEMAND VALVE
First breath automatic activation
Quarter turn attachment
Audible and tactile locking system
Ergonomically designed to fi t into
the fi re fi ghters gloved hand
Low breathing resistance helps the
user breathe more easily
Fitted with Anti Fogging Spray Bar
which also acts as a cooling e ect for
the user
EZ Flo approved to EN137:2006
EZ Flo CBRN approved to
EN137:2006 and BS8468-1

HOSES
Stainless steel swivel hose fi ttings
Medium pressure hose
Maximum working pressure 16 bar
Minimum burst pressure 80 bar
High pressure hose
Maximum working pressure 450 bar
Minimum burst pressure 800 bar

COMMUNICATIONS
EPIC 3 RI Voice Communication
System —Epic 3RI is a Radio
communication voice amplifi er
which is compatible with a range
of di erent radios accesspories
include lapel speaker microphones,
specialized accessories, and
programming utilities
A3000HT FACEMASK
Propak EZ-FLO-F and FX is
compatible with the AV3000HT
facemask, which o ers maximum
comfort and protection. The
AV3000HT passes the NFPA thermal
radiant heat requirement of 15Kw/
M2.

OPTIONS
The Scott Safety ProPak can be
specifi ed in many confi gurations
including Split Demand Valve
Coupling (SDC) and attachments
for Airline, which can be used for
Rescue Second Man (RSM) and
Decontamination
